Description

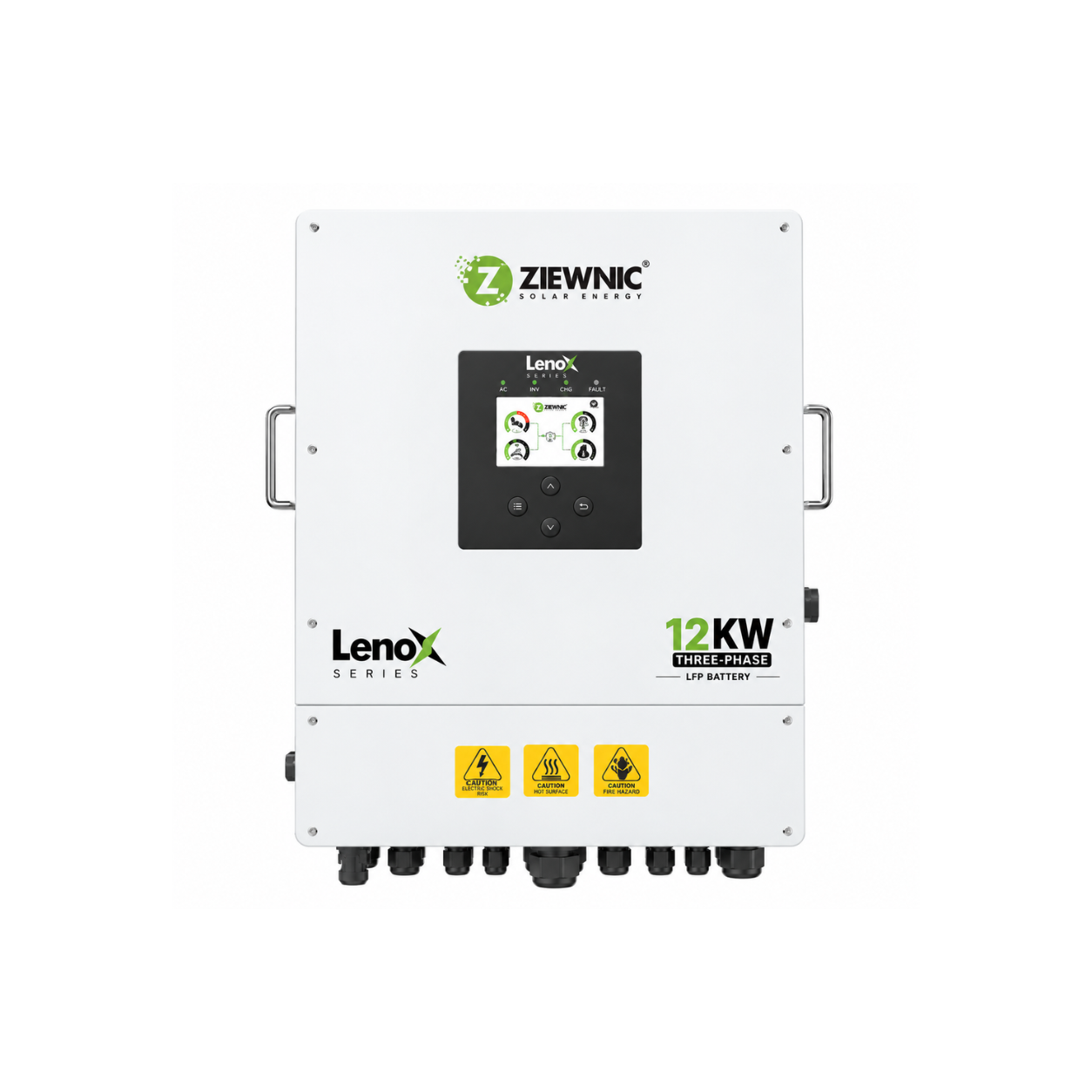

The ZIEWNIC 12KW Hybrid Solar Inverter PV15600 is a powerful three-phase solar energy solution designed for residential, commercial and high-power applications. It combines solar power generation, battery storage and grid connectivity into one flexible energy management system.
Powerful 12KW Hybrid Solar Solution
The ZIEWNIC 12KW Hybrid Solar Inverter PV15600 is a powerful three-phase solar energy solution designed for residential, commercial and high-power applications. It combines solar power generation, battery storage and grid connectivity into one flexible energy management system.
With a 12kW rated output and up to 15.6kW maximum PV input, the PV15600 provides excellent flexibility for larger solar installations and energy-storage systems.
12KW Three-Phase Hybrid Performance
The ZIEWNIC 12KW Hybrid Solar Inverter delivers up to 12,000W rated output and supports a three-phase 230/400V grid connection.
It supports both 50Hz and 60Hz frequencies and has a rated output current of 30A. Its hybrid design makes it suitable for systems that require efficient solar generation, battery storage and reliable energy management.
For off-grid operation, the inverter can provide up to 1.5 times its rated power for 10 seconds, helping handle temporary high-load requirements.
15.6KW Maximum Solar PV Input
The ZIEWNIC 12KW Hybrid Solar Inverter supports up to 15.6kW of solar PV input, allowing users to pair the inverter with a larger compatible solar panel system.
This higher PV input capacity provides greater flexibility when designing a solar installation according to energy requirements.
Solar Input Specifications
- Maximum PV input: 15.6kW
- Maximum DC voltage: 800V
- MPPT operating range: 200–650V
- Peak efficiency: up to 99%
Proper solar panel configuration should follow the manufacturer’s voltage, current and installation requirements.
48V Battery Storage
The PV15600 is designed for a 48V battery system with a supported voltage range of 40–63V.
It supports:
- Lithium batteries
- Lead-acid batteries
- Tubular batteries
- Compatible 48V LiFePO4 batteries
The maximum battery charging current is 240A, while the maximum discharge current is also 240A.
This makes the system suitable for installations requiring substantial battery storage and backup capability.
Six Programmable Battery Time Periods
The PV15600 provides six programmable charging and discharging time periods.
Users can configure battery operation according to their energy requirements and preferred charging or discharge schedules. This provides greater flexibility for managing stored solar energy throughout the day.
IP65 Protection
The inverter features an IP65 protection rating, providing resistance against dust and water exposure when installed correctly.
Its specified operating temperature range is -25°C to 60°C, with power derating above 45°C.
For reliable long-term operation, the inverter should be installed according to the manufacturer’s environmental and ventilation requirements.
Smart Cooling & Touchscreen Display
The PV15600 features a smart cooling system designed to help maintain stable operating temperatures.
Its touchscreen display provides convenient access to system information and operating parameters, making it easier to monitor and manage the solar energy system.
Smart Monitoring & Communication
The inverter provides multiple communication interfaces for compatible monitoring and control systems.
Available communication options include:
- RS232
- CAN
- RS485
- Optional Wi-Fi
- Optional CT
These communication features provide flexibility for monitoring and energy-management applications.
Advanced Hybrid Energy Management
The ZIEWNIC 12KW Hybrid Solar Inverter PV15600 supports AC coupling, making it suitable for compatible solar-system upgrades and retrofit applications.
It can also support compatible diesel generator energy-storage applications.
Built-in protection functions include:
- Anti-islanding protection
- Insulation monitoring
- Residual-current monitoring
- AC over-current protection
- AC over-voltage protection
- Over-temperature protection
Optional arc-fault protection is also available.
ZIEWNIC PV15600 Price in Pakistan
The ZIEWNIC 12KW Hybrid Solar Inverter PV15600 is listed at Rs. 580,000 at ASZ Electronics.
The final selling price may vary depending on availability, warranty, seller and installation requirements.
For customers looking for a 12KW three-phase hybrid solar inverter, the PV15600 offers a strong combination of 15.6kW PV input capacity, 48V battery support, programmable battery scheduling, IP65 protection and smart energy-management features.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZIEWNIC |
| Series | Lenox Series 3.0 |
| Model | PV15600 |
| Rated Power | 12kW |
| Maximum PV Input | 15.6kW |
| Battery Voltage | 48V |
| Battery Voltage Range | 40–63V |
| Maximum Charge Current | 240A |
| Maximum Discharge Current | 240A |
| Phase | Three Phase |
| Grid Voltage | 230/400V |
| Frequency | 50/60Hz |
| Maximum DC Voltage | 800V |
| MPPT Range | 200–650V |
| Peak Efficiency | Up to 99% |
| Protection Rating | IP65 |
| Transfer Time | <10ms |
| Display | Touchscreen |
| Cooling | Smart Cooling |
| Communication | RS232, CAN, RS485 |
| Optional Communication | Wi-Fi, CT |
| Operating Temperature | -25°C to 60°C |
| Dimensions | 446 × 486 × 256mm |
| Off-Grid Peak Power | 1.5× rated power for 10 seconds |
| Price | Rs. 580,000 |
Key Features
- 12kW rated three-phase output
- Up to 15.6kW solar PV input
- 48V battery system
- 240A maximum charging current
- 240A maximum discharge current
- Lithium, lead-acid and tubular battery support
- Compatible 48V LiFePO4 battery systems
- Six programmable charging and discharging periods
- 200–650V MPPT range
- 800V maximum DC input voltage
- Up to 99% peak efficiency
- IP65 protection
- Smart cooling system
- Touchscreen display
- RS232, CAN and RS485 communication
- Optional Wi-Fi and CT
- AC coupling support
- Diesel generator energy-storage support
- Anti-islanding protection
- Over-temperature protection
- Parallel operation support
- Optional arc-fault protection
- Service-friendly external design
Frequently Asked Questions
What is the ZIEWNIC PV15600?
The ZIEWNIC PV15600 is a 12KW three-phase hybrid solar inverter from the Lenox Series 3.0. It supports up to 15.6KW solar PV input and is designed for 48V battery systems.
What is the ZIEWNIC PV15600 price in Pakistan?
The listed price of the ZIEWNIC 12KW Hybrid Solar Inverter PV15600 is Rs. 580,000. The final price can vary depending on stock, warranty, seller and installation requirements.
Is the PV15600 a three-phase inverter?
Yes. The PV15600 is designed for three-phase operation with a 230/400V grid connection.
How much solar power can the PV15600 handle?
The PV15600 supports a maximum solar PV input of 15.6KW.
What batteries are compatible with the PV15600?
The inverter supports lithium, lead-acid and tubular batteries, including compatible 48V LiFePO4 battery systems.
Does the PV15600 support battery scheduling?
Yes. It provides six programmable charging and discharging time periods.
Does the ZIEWNIC PV15600 have IP65 protection?
Yes. The inverter has an IP65 protection rating when installed according to the manufacturer’s requirements.
Can the PV15600 work with on-grid and off-grid systems?
Yes. The ZIEWNIC 12KW Hybrid Solar Inverter is designed for hybrid applications supporting grid-connected and off-grid operation, battery storage and AC coupling.
Why Choose ZIEWNIC PV15600?
The ZIEWNIC 12KW Hybrid Solar Inverter PV15600 is a strong choice for users who need high solar input capacity, three-phase output and flexible battery management in one system.
Its 15.6KW PV input, 48V battery support, six programmable battery periods, IP65 protection and multiple communication options make it suitable for compatible residential, commercial and high-power solar installations.
