Description

The ZIEWNIC ROUX PV7000 4.7KW is a high-frequency hybrid solar inverter designed for reliable solar power applications. The model is identified by ZIEWNIC as ROUX-X-LV4.7 VERSION54, while the PV7000 designation corresponds to its high PV input capability

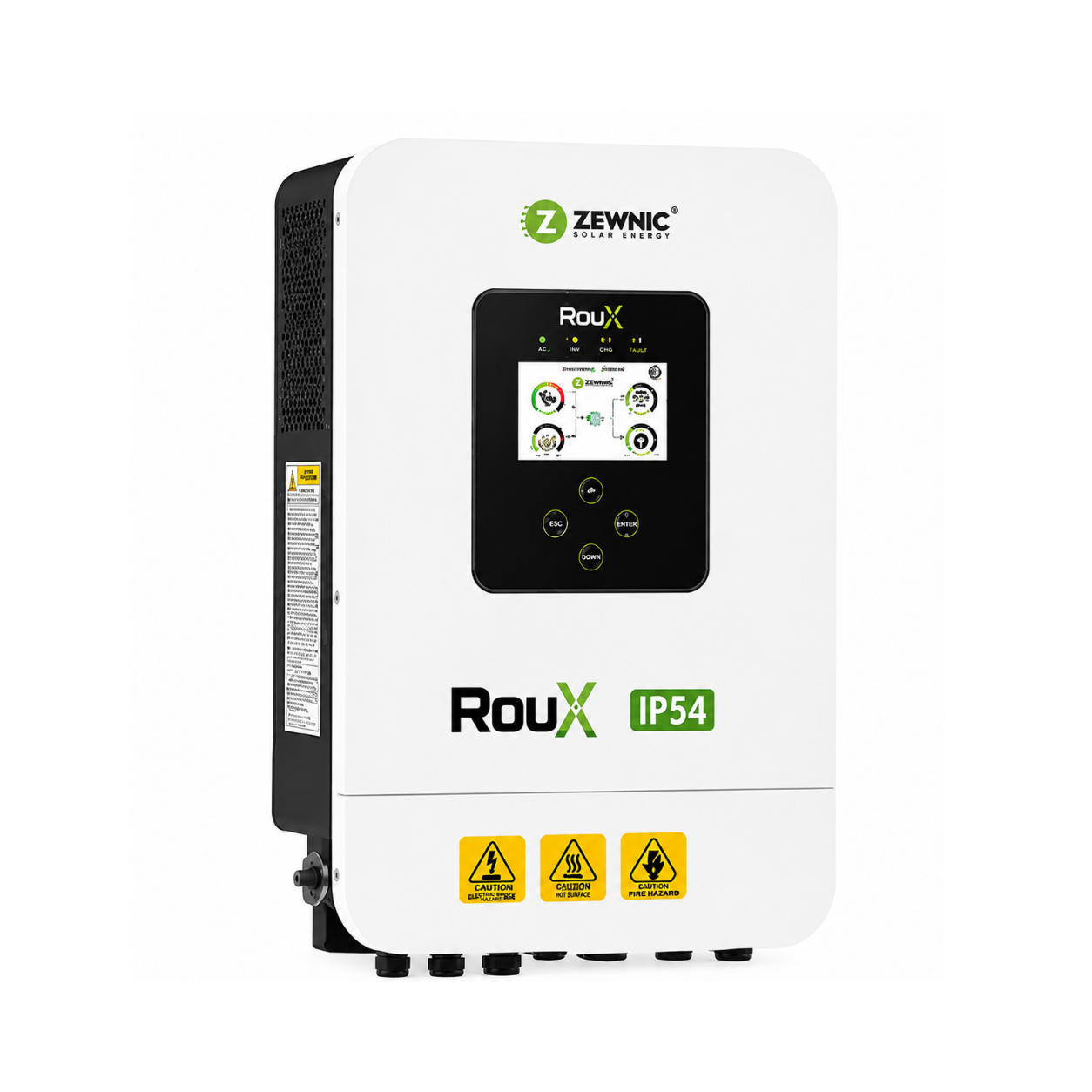

ZIEWNIC ROUX PV7000 4.7KW Hybrid Solar Inverter

The ZIEWNIC ROUX PV7000 4.7KW is a high-frequency hybrid solar inverter designed for reliable solar power applications. The model is identified by ZIEWNIC as ROUX-X-LV4.7 VERSION54, while the PV7000 designation corresponds to its high PV input capability.

The official specifications list 4700W rated power in PV mode, equivalent to 4.7KW, with support for up to 7000W maximum PV input wattage.

IP54 Protection & Aluminium Casing

The ZIEWNIC ROUX PV7000 4.7KW features an IP54-rated design for improved protection against dust and water exposure.

Its aluminium casing provides a durable enclosure while maintaining a practical design for solar installation applications.

Key Benefits

• IP54 protection
• Aluminium casing
• High-frequency inverter design
• Output power factor of 1
• Pure sine wave output
• Suitable for household and solar applications

4.7KW PV-Mode Rated Power

The inverter provides 4700W rated power in PV mode, corresponding to 4.7KW.

It also supports up to 7000W maximum PV input wattage, allowing the system to accommodate a higher solar-panel input capacity according to the installation requirements.

Wide 60–500VDC MPPT Range

The ZIEWNIC ROUX PV7000 4.7KW provides an MPPT tracking range of 60–500VDC.

The official specifications also list:

• Maximum PV input voltage: 500VDC
• Maximum PV input current: 32A
• Maximum PV charge current: 120A

This wide MPPT range provides flexibility when configuring a compatible solar-panel system.

Lithium Battery Support

The inverter supports lithium battery activation and wake-up start functionality.

It is compatible with:

• Lithium batteries
• GEL batteries
• VRLA batteries

This makes the inverter suitable for different battery-storage configurations depending on system requirements.

Built-in Wi-Fi Monitoring

The ZIEWNIC ROUX PV7000 4.7KW includes built-in Wi-Fi monitoring, allowing users to monitor system performance remotely.

The colorful touch LCD also provides convenient access to operating information and real-time load power.

Pure Sine Wave Output

The inverter provides pure sine wave output, making it suitable for applications where stable AC power is required.

It also includes output short-circuit protection for additional system protection.

Adjustable Parameters

The inverter provides adjustable parameter configuration, allowing settings to be configured according to the requirements of the solar power system.

Its AC input supports 220/230/240VAC, with 50/60Hz self-adaptation according to the official specifications.

Suitable Applications

The ZIEWNIC ROUX PV7000 4.7KW can be considered for:

• Residential solar systems
• Home backup power
• Solar energy installations
• Battery-storage systems
• Small commercial applications
• Other compatible solar power setups

Actual system performance depends on solar-panel configuration, battery capacity, connected load, installation conditions and other system components.

Frequently Asked Questions

Is the ZIEWNIC ROUX PV7000 a 4.7KW inverter?

Yes. The official specification lists 4700W rated power in PV mode, which corresponds to 4.7KW.

What is the maximum PV input of the PV7000?

The inverter supports up to 7000W maximum PV input wattage.

What is the MPPT voltage range?

The official specification lists an MPPT tracking range of 60–500VDC.

Does the ZIEWNIC ROUX PV7000 support lithium batteries?

Yes. It supports lithium battery activation and wake-up start and is compatible with lithium, GEL and VRLA batteries.

Does this inverter have Wi-Fi monitoring?

Yes. The inverter features built-in Wi-Fi monitoring for remote system monitoring.

What type of output does it provide?

The inverter provides pure sine wave output.

What protection rating does it have?

The ZIEWNIC ROUX PV7000 4.7KW has an IP54 protection rating.

What is the price of ZIEWNIC ROUX PV7000 4.7KW?

The product is listed on your store at Rs. 134,000.

Why Choose ZIEWNIC ROUX PV7000 4.7KW?

The ZIEWNIC ROUX PV7000 4.7KW combines 4.7KW PV-mode rated power, up to 7000W maximum PV input, IP54 protection, a wide 60–500VDC MPPT range, lithium battery support, Wi-Fi monitoring and pure sine wave output.

Its touch LCD, adjustable parameters and multiple battery compatibility options make it a practical choice for customers looking for a feature-rich hybrid solar inverter for residential or compatible commercial solar applications.
