Description

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter is designed for customers looking for a powerful and flexible solar power solution for residential and small commercial applications.

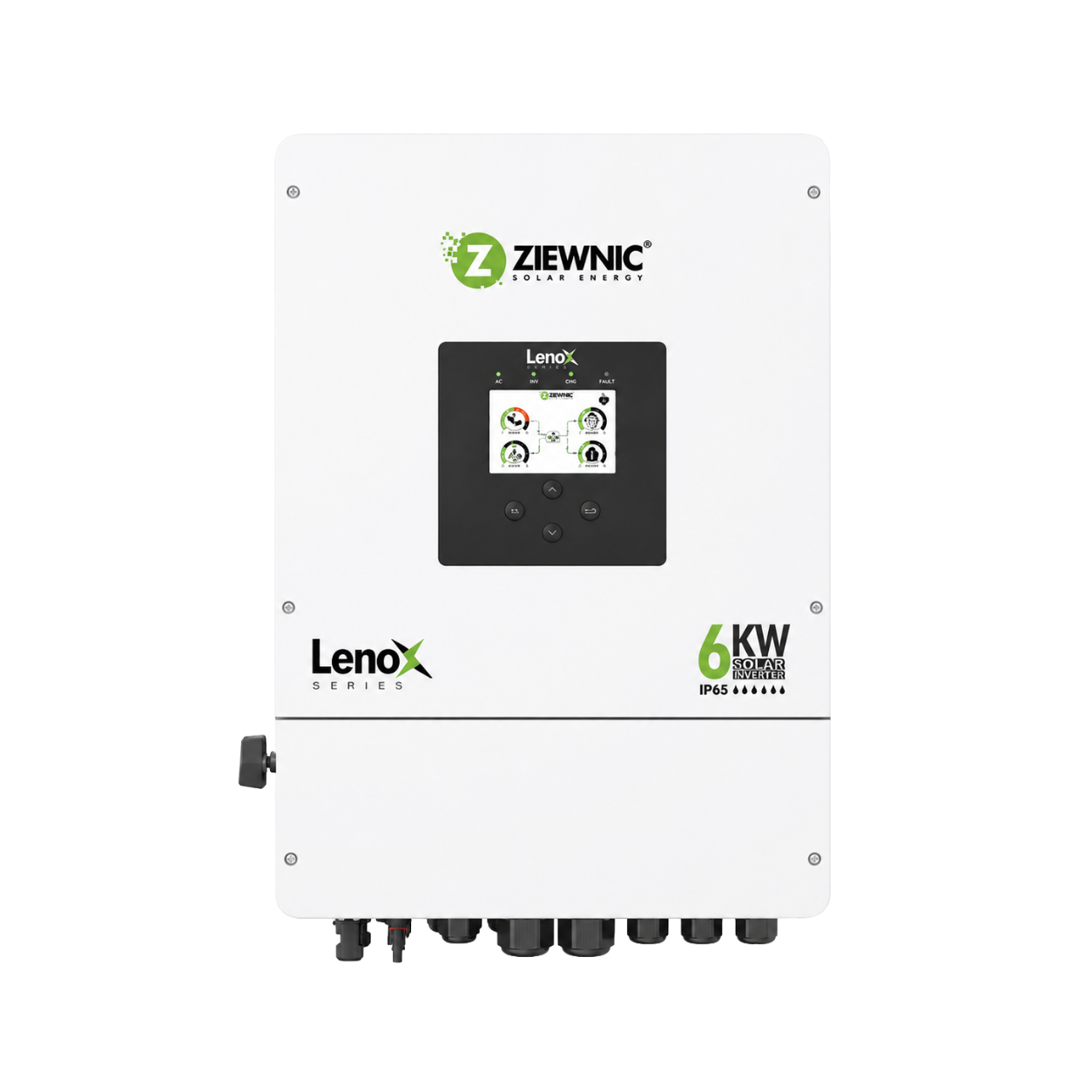

ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter is designed for customers looking for a powerful and flexible solar power solution for residential and small commercial applications.

This hybrid inverter combines solar energy conversion, battery storage and grid-compatible operation in one system. With a 6000W rated output and up to 8000W maximum PV input, the PV8000 can support a substantial compatible solar setup while providing dependable power for everyday electrical loads.

Powerful 6KW Output with 8000W PV Input

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter provides a 6000W rated output while supporting up to 8000W maximum PV input power.

This combination allows users to connect a higher-capacity compatible solar array while using a 6KW inverter output system.

Key Benefits

• 6000W rated output
• Up to 8000W maximum PV input
• Dual MPPT technology
• 48V battery system
• On-grid and off-grid hybrid functionality
• IP65 protection
• Flexible battery management

Dual MPPT Technology

The PV8000 features dual MPPT technology with two MPPT input channels.

This configuration can provide greater flexibility when designing a compatible solar-panel system, particularly where panels may be installed in different orientations or operating conditions.

The specified PV input range is approximately 125V to 430V within its supported MPPT operating range.

IP65 Protection for Reliable Installation

The ZIEWNIC LENOX IP65 PV8000 6KW Hybrid Solar Inverter features an IP65 protection rating.

This design provides protection against dust and water jets, making it suitable for compatible outdoor or semi-outdoor installation environments when installed according to the manufacturer’s requirements.

The inverter should always be installed in accordance with recommended installation guidelines and should not be considered suitable for immersion in water.

48V Battery Compatibility

The PV8000 operates with a 48V battery system and supports a battery voltage range of approximately 40V to 63V.

Compatible battery options include:

• Lithium batteries
• Lead-acid batteries
• Tubular batteries

This flexibility allows users to select a compatible battery solution according to their backup and energy-storage requirements.

Smart Charging & Discharging Management

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter supports up to six configurable charging and discharging time periods.

This feature allows users to create a more suitable battery-management schedule according to their energy requirements and system configuration.

It can help provide greater flexibility for solar energy storage and power management.

On-Grid & Off-Grid Hybrid Functionality

The PV8000 supports both on-grid and off-grid hybrid functionality.

This allows a compatible system to work with different available power sources, including:

• Solar panels
• Battery storage
• Grid electricity
• Compatible generator backup

This flexibility makes the inverter suitable for users who require different energy-management options.

Generator & AC Coupling Support

The inverter supports energy storage from a compatible diesel generator.

It also supports AC coupling, which can be useful when integrating compatible equipment into an existing solar installation.

These features can provide additional flexibility when upgrading or expanding an existing energy system.

Colorful Touch LCD & Monitoring

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter includes a colorful touch LCD display for convenient access to system information.

Users can monitor important operating details directly from the inverter.

Monitoring functions can help users track:

• Solar generation
• Load information
• Battery status
• Input information
• Output information
• System operating status

Available remote monitoring features may depend on the specific product version and configuration.

Protection Features

The PV8000 includes multiple protection functions designed to support stable system operation.

Manufacturer specifications list features including:

• Anti-islanding protection
• Insulation monitoring
• Residual-current monitoring
• Over-temperature protection

Arc-fault protection may be available depending on the specific configuration.

High Efficiency Performance

The inverter has a manufacturer-listed peak efficiency of up to 99%.

Its smart cooling system is designed to help maintain stable performance under suitable operating and installation conditions.

Actual performance can vary depending on solar conditions, load requirements, battery configuration and installation quality.

Suitable Applications

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter can be suitable for:

• Residential solar systems
• Home backup systems
• Battery-storage installations
• Small commercial solar systems
• Hybrid solar installations
• Grid-connected compatible systems
• Off-grid compatible solar setups

Actual system sizing should always be based on connected loads, solar-panel capacity, battery requirements and installation conditions.

Frequently Asked Questions

Is the ZIEWNIC Lenox PV8000 a 6KW inverter?

Yes. The PV8000 has a 6000W rated output, which corresponds to 6KW.

What is the maximum PV input?

The inverter supports up to 8000W maximum PV input power.

Does the PV8000 support dual MPPT?

Yes. The inverter features dual MPPT technology.

What battery voltage does it use?

The PV8000 is designed for a 48V battery system.

What battery types are supported?

The inverter supports compatible lithium, lead-acid and tubular batteries.

Does the PV8000 support on-grid and off-grid operation?

Yes. It supports on-grid and off-grid hybrid functionality according to the listed product specifications.

What protection rating does it have?

The inverter features an IP65 protection rating.

Can battery charging and discharging times be configured?

Yes. The system supports up to six configurable battery charging and discharging time periods.

What is the price of ZIEWNIC Lenox PV8000 6KW in Pakistan?

The product is listed at Rs. 230,000.

Why Choose ZIEWNIC Lenox PV8000 6KW?

The ZIEWNIC Lenox PV8000 6KW Hybrid Solar Inverter combines 6KW rated output, up to 8000W PV input, dual MPPT technology, IP65 protection and a flexible 48V battery system.

Its support for multiple battery types, configurable charging and discharging periods, hybrid functionality, AC coupling and monitoring features makes it a reliable and powerful choice for compatible residential and small commercial solar applications.
