Description
The ZIEWNIC PV5000 Inverter is a 3.5KW ROUX Mini Hybrid Solar Inverter designed for flexible solar and backup power applications. It features an 80A True MPPT solar charge controller, 5000W maximum PV array capacity, pure sine wave output, lithium battery compatibility, optional Wi-Fi monitoring and IP54 protection.

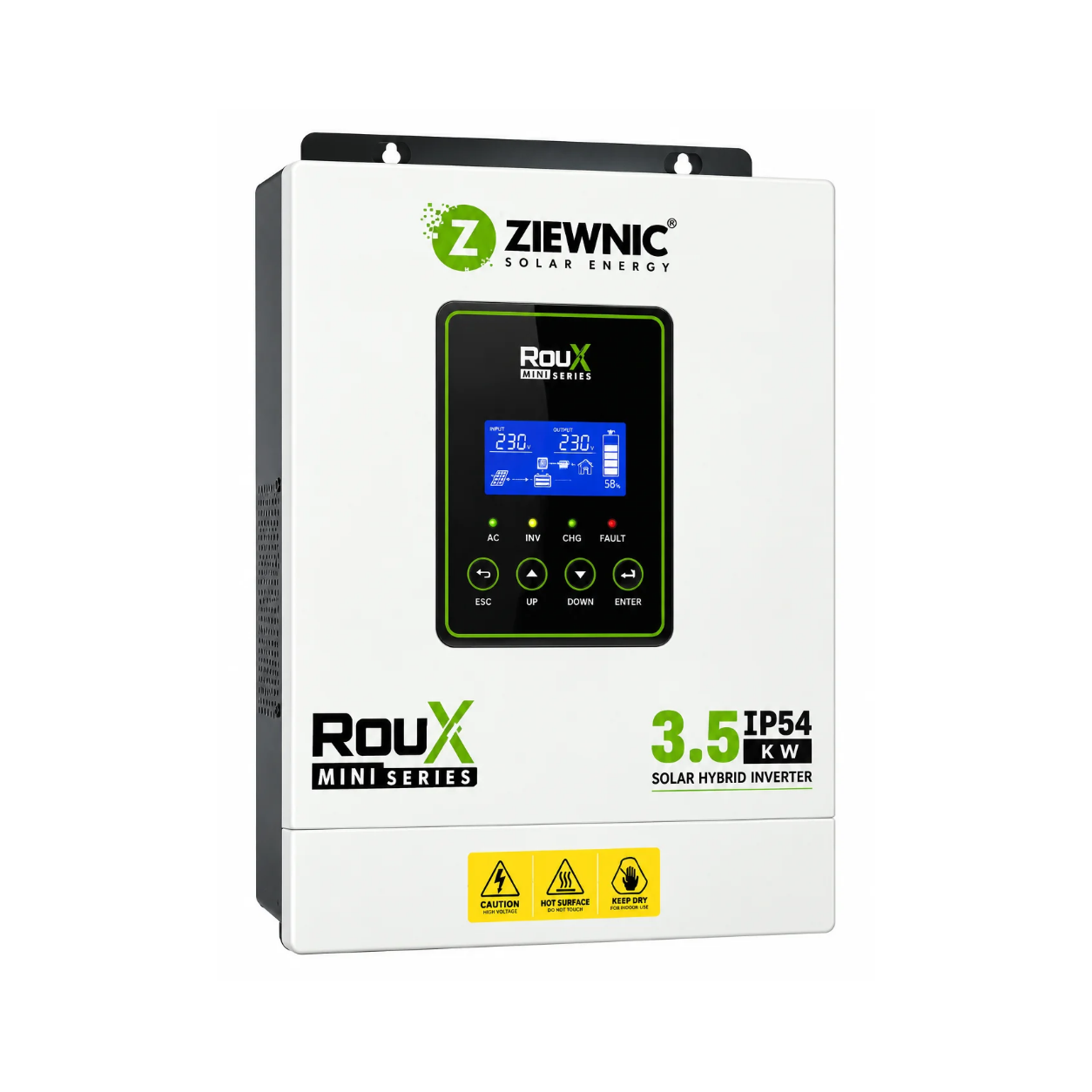

ZIEWNIC PV5000 3.5KW ROUX Mini Hybrid Solar Inverter
The ZIEWNIC PV5000 Inverter is a 3.5KW ROUX Mini Hybrid Solar Inverter designed for flexible solar and backup power applications. It features an 80A True MPPT solar charge controller, 5000W maximum PV array capacity, pure sine wave output, lithium battery compatibility, optional Wi-Fi monitoring and IP54 protection.
3.5KW Hybrid Solar Inverter
The ZIEWNIC PV5000 has a rated power of 3500VA, making it a suitable option for compatible residential and backup solar power systems.
The ROUX Mini is designed to work with battery power, main utility supply and generator power, providing flexibility for different power configurations.
80A True MPPT Solar Charge Controller
The PV5000 features an 80A True MPPT solar charge controller. Its maximum PV array power is 5000W, while the specified MPPT operating range is 55–430VDC.
The maximum PV array open-circuit voltage is specified as 430VDC, with a maximum PV input current of 18A.
24V Battery System
The ZIEWNIC PV5000 uses a 24VDC battery system. The official specifications list a floating charge voltage of 27VDC and overcharge protection at 33VDC.
Lithium Battery Support
The ROUX Mini PV5000 is designed to support lithium batteries. ZIEWNIC specifically states that the ROUX Mini is compatible with all lithium battery types.
Battery settings should be configured according to the specifications and charging requirements of the selected battery.
Pure Sine Wave Output
The ZIEWNIC PV5000 Inverter provides 100% pure sine wave output, making it suitable for compatible electrical appliances and loads that require a clean AC waveform.
Optional Wi-Fi Monitoring
The PV5000 supports optional Wi-Fi monitoring. With the compatible Wi-Fi function, users can monitor and configure the inverter and check its real-time operating status remotely.
IP54 Protection
The ROUX Mini PV5000 features IP54 protection for dust and water-splash resistance within the limits of the IP54 rating.
Main Supply & Generator Compatibility
The inverter is designed to operate with main utility supply and generator power, in addition to its solar and battery functions.
Power Factor 1.0
The ROUX Mini PV5000 features a power factor of 1.0, according to the official ZIEWNIC product documentation.
High Efficiency
The PV5000 has a listed maximum efficiency of 98%. The official specifications also list peak PV-to-inverter efficiency of 97% and battery-to-inverter efficiency of 94%.
Updated LCD Display
The ROUX Mini features an updated LCD display designed to provide a convenient interface for viewing inverter operating information.
Taiwan Engineering
ZIEWNIC describes the ROUX Mini as engineered in Taiwan, using high-efficiency MOSFET technology and an enhanced chopper design.
ZIEWNIC PV5000 Price in Pakistan
The ZIEWNIC PV5000 3.5KW ROUX Mini Hybrid Solar Inverter is available at Rs. 85,000.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZIEWNIC |
| Series | ROUX Mini |
| Model | PV5000 |
| Generation | 6th Generation |
| Rated Power | 3500VA / 3.5KW |
| Type | Hybrid Solar Inverter |
| Output Waveform | Pure Sine Wave |
| Power Factor | 1.0 |
| AC Input Voltage | 230VAC |
| Selectable AC Voltage | 90–280VAC / 170–280VAC |
| Frequency | 50Hz / 60Hz Auto Sensing |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Maximum AC Charge Current | 80A |
| Maximum PV Array Power | 5000W |
| MPPT Range | 55–430VDC |
| Maximum PV Open Circuit Voltage | 430VDC |
| Maximum PV Input Current | 18A |
| Maximum Charge Current | 80A True MPPT |
| Maximum Efficiency | 98% |
| PV to Inverter Efficiency | 97% |
| Battery to Inverter Efficiency | 94% |
| Wi-Fi Monitoring | Optional |
| Communication | RS232 / GPRS / Wi-Fi |
| Protection | IP54 |
| Battery Support | Lithium Batteries |
| Utility Supply | Supported |
| Generator Power | Supported |
| Operating Temperature | 0°C–55°C |
| Storage Temperature | -15°C–60°C |
| Humidity | 5%–95% RH, Non-Condensing |
| Price | Rs. 85,000 |
All technical values above are taken from the current ZIEWNIC ROUX Mini PV5000 datasheet.
Key Features
- ⚡ 3.5KW / 3500VA Rated Power
- ☀️ 80A True MPPT
- 🔆 5000W Maximum PV Array Power
- ⚡ 55–430VDC MPPT Range
- 🔌 18A Maximum PV Input Current
- 🔋 24V Battery System
- 🔋 Lithium Battery Compatible
- 🌊 100% Pure Sine Wave Output
- 📶 Optional Wi-Fi Monitoring
- 🛡️ IP54 Protection
- 🔌 Main Supply & Generator Compatible
- 📊 98% Maximum Efficiency
- ⚙️ Power Factor 1.0
- 🖥️ Updated LCD Display
- 🇹🇼 Engineered in Taiwan
Frequently Asked Questions
1. What is the capacity of the ZIEWNIC PV5000?
The ZIEWNIC PV5000 has a rated power of 3500VA / 3.5KW.
2. What MPPT does the PV5000 use?
It uses an 80A True MPPT solar charge controller.
3. How much solar power can the PV5000 handle?
The maximum PV array power is 5000W.
4. What is the MPPT voltage range?
The specified MPPT operating range is 55–430VDC.
5. Does the PV5000 support lithium batteries?
Yes. The ROUX Mini PV5000 supports lithium batteries.
6. What battery voltage does PV5000 use?
The PV5000 uses a 24VDC battery system.
7. Does ZIEWNIC PV5000 support Wi-Fi?
Yes. Wi-Fi monitoring is available as an optional feature.
8. Does PV5000 provide pure sine wave output?
Yes. The ROUX Mini PV5000 provides pure sine wave output.
9. What is the protection rating of PV5000?
The PV5000 has IP54 protection for dust and water-splash resistance within the limits of the rating.
10. What is the maximum PV input current?
The maximum PV input current is 18A.
11. What is the price of ZIEWNIC PV5000 in Pakistan?
The listed price is Rs. 85,000.
