Description

The ZIEWNIC ROUX PV9000 6.7KW is a high-frequency hybrid solar inverter designed for solar power systems requiring high PV input capacity, battery support and reliable power conversion. The product is listed by ZIEWNIC as IP54 (PV9000), while the related ROUX Series model is identified as ROUX-X-LV6.7 VERSION54.

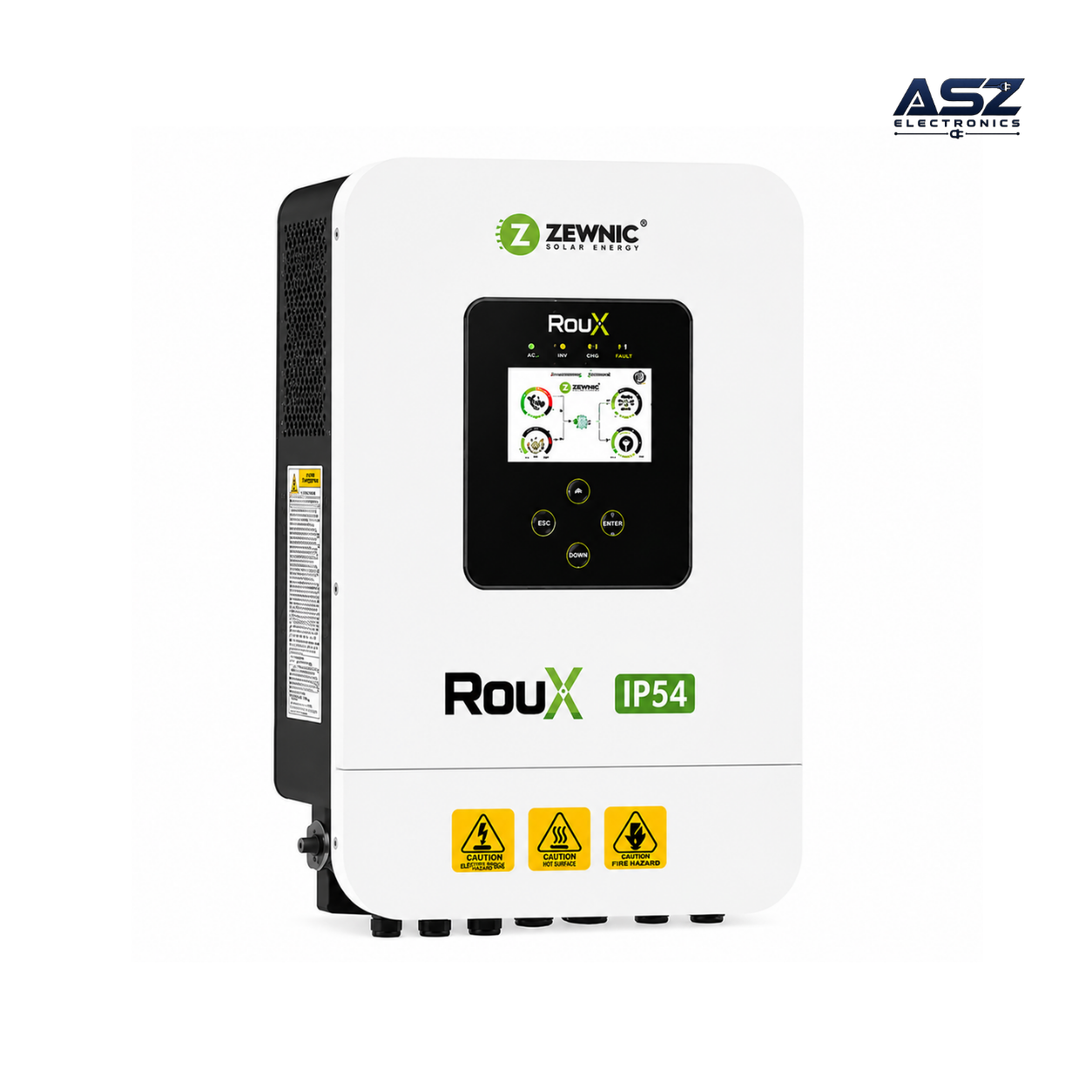

ZIEWNIC ROUX PV9000 6.7KW Hybrid Solar Inverter

The ZIEWNIC ROUX PV9000 6.7KW is a high-frequency hybrid solar inverter designed for solar power systems requiring high PV input capacity, battery support and reliable power conversion. The product is listed by ZIEWNIC as IP54 (PV9000), while the related ROUX Series model is identified as ROUX-X-LV6.7 VERSION54.

The official specification lists 6700W rated power in PV mode, equivalent to 6.7KW, while the maximum PV input wattage is 9000W.

Powerful 6.7KW PV-Mode Performance

The ZIEWNIC ROUX PV9000 6.7KW provides 6700W rated power in PV mode.

It also supports up to 9000W maximum PV input wattage, providing substantial solar input capacity for compatible solar installations.

Key Benefits

• 6.7KW rated PV-mode power
• Up to 9000W maximum PV input
• High-frequency inverter design
• Pure sine wave output
• IP54 protection
• 48V battery system
• Built-in Wi-Fi monitoring

Wide 60–500VDC MPPT Range

The inverter provides an MPPT tracking range of 60–500VDC.

The official specifications also list:

• Maximum PV input voltage: 500VDC
• Maximum PV input current: 36A
• Maximum PV charge current: 120A

This wide MPPT range provides flexibility when configuring a compatible solar-panel system.

48VDC Battery System

The ZIEWNIC ROUX PV9000 6.7KW uses a 48VDC battery system.

It supports lithium battery activation and wake-up start functionality and is compatible with:

• Lithium batteries
• GEL batteries
• VRLA batteries

This makes it suitable for solar systems where battery storage and backup power are required.

Reliable IP54 Protection

The inverter features an IP54 protection rating and an aluminium casing.

The IP54 design provides protection against dust and water exposure, making the inverter suitable for compatible indoor and protected installation environments.

Pure Sine Wave Output

The ZIEWNIC ROUX PV9000 6.7KW provides pure sine wave output for stable AC power delivery.

It also includes output short-circuit protection.

The AC input supports 220/230/240VAC, while the frequency automatically adapts between 50Hz and 60Hz.

The official specifications list an output voltage of 220/230/240VAC ±5%.

Colorful Touch LCD Display

The inverter features a colorful touch LCD that provides operating information and system status.

Users can view information such as:

• Operating mode
• Load information
• Input information
• Output information
• Real-time load power

The display provides convenient access to important system information.

Built-in Wi-Fi Monitoring

The ZIEWNIC ROUX PV9000 6.7KW includes built-in Wi-Fi monitoring, allowing users to monitor system performance remotely.

The inverter also supports adjustable parameters, allowing settings to be configured according to system requirements.

Suitable Applications

The ZIEWNIC ROUX PV9000 6.7KW can be considered for:

• Residential solar systems
• Home backup power
• Solar energy installations
• Battery-storage systems
• Large home solar setups
• Compatible commercial applications

Actual system performance depends on solar-panel configuration, battery capacity, connected load, installation conditions and other system components.

Frequently Asked Questions

Is the ZIEWNIC ROUX PV9000 a 6.7KW inverter?

Yes. The official specification lists 6700W rated power in PV mode, which corresponds to 6.7KW.

What is the maximum PV input of PV9000?

The inverter supports up to 9000W maximum PV input wattage.

What is the MPPT voltage range?

The official specification lists an MPPT tracking range of 60–500VDC.

Does the PV9000 support lithium batteries?

Yes. It supports lithium battery activation and wake-up start, along with lithium, GEL and VRLA battery types.

What battery voltage does the PV9000 use?

The ZIEWNIC ROUX PV9000 6.7KW uses a 48VDC battery system.

Does this inverter have Wi-Fi monitoring?

Yes. The inverter features built-in Wi-Fi monitoring for remote system monitoring.

What type of output does it provide?

The inverter provides pure sine wave output.

What is the protection rating?

The ZIEWNIC ROUX PV9000 6.7KW has an IP54 protection rating.

What is the price of ZIEWNIC ROUX PV9000 6.7KW?

The product is listed on your store at Rs. 167,000.

Why Choose ZIEWNIC ROUX PV9000 6.7KW?

The ZIEWNIC ROUX PV9000 6.7KW combines 6.7KW PV-mode rated power, up to 9000W maximum PV input, a wide 60–500VDC MPPT range, 48V battery support, IP54 protection, Wi-Fi monitoring and pure sine wave output.

Its colorful touch LCD, adjustable parameters and support for multiple battery types make it a reliable and powerful option for compatible residential and solar power applications.
