Description
The PV10000 8KW Hybrid Inverter is designed for advanced power management with multiple features focused on flexible AC power supply, battery charging and battery monitoring. With an 8KW capacity, automatic switching between two independent AC power sources, 150A maximum charging current and dedicated communication options, the PV10000 provides a versatile solution for solar and backup power systems.

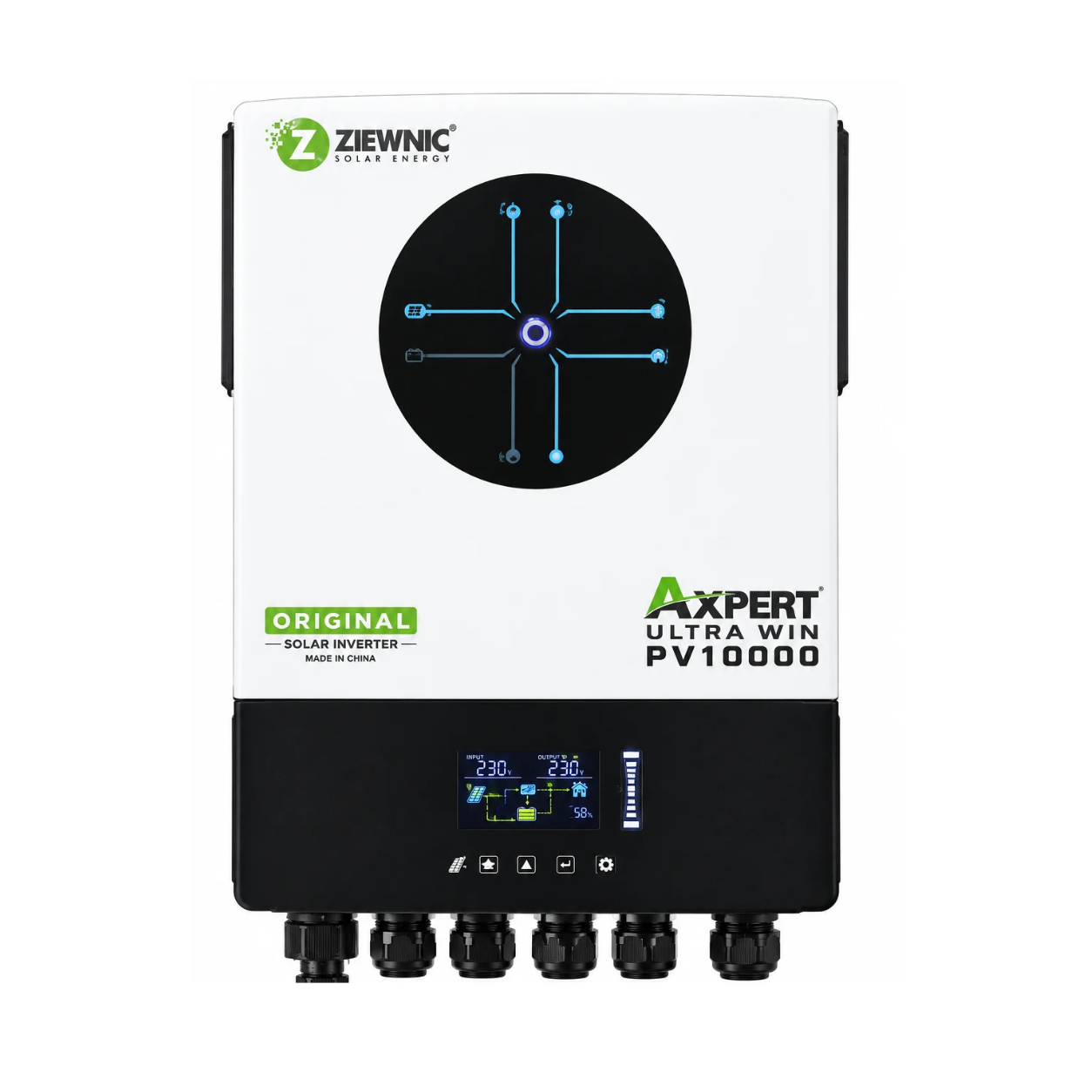

PV10000 8KW Hybrid Inverter – Powerful & Smart Power Management
The PV10000 8KW Hybrid Inverter is designed for advanced power management with multiple features focused on flexible AC power supply, battery charging and battery monitoring. With an 8KW capacity, automatic switching between two independent AC power sources, 150A maximum charging current and dedicated communication options, the PV10000 provides a versatile solution for solar and backup power systems.
8KW Power Capacity
The PV10000 8KW Hybrid Inverter provides an 8KW capacity for power-management applications. Its combination of dual AC source support, battery-management features and communication interfaces makes it suitable for systems where reliable power control and battery monitoring are important.
Two Independent AC Power Sources
A key feature of the PV10000 8KW Hybrid Inverter is its ability to connect two independent AC power sources. The inverter can automatically switch between the connected AC sources according to the system configuration.
Automatic switching provides greater flexibility when managing multiple AC power sources and can simplify power-source management within the overall electrical system.
150A Maximum Charging Current
The PV10000 supports a maximum charging current of 150A. This provides strong charging capability for compatible battery configurations and helps support efficient battery charging as part of the complete power system.
The actual charging setup should always be configured according to the battery manufacturer’s specifications and the inverter’s installation requirements.
BMS Communication Support
The PV10000 8KW Hybrid Inverter includes a reserved communication port for Battery Management System (BMS) connectivity. It supports communication interfaces including RS485, CAN-BUS and RS232.
BMS communication allows compatible battery systems to exchange relevant battery-management information with the inverter, helping create a more integrated battery and inverter setup.
External BTS Support
The inverter also supports an external BTS (Battery Temperature Sensor) for battery temperature detection. Monitoring battery temperature can provide useful information for battery-management and charging-system configuration.
With BTS support, the PV10000 8KW Hybrid Inverter can be integrated with an external battery temperature sensing setup where required.
Battery Equalization Function
The PV10000 includes a battery equalization function designed to optimize battery performance and support battery lifecycle management.
Battery equalization is particularly useful as part of an appropriate battery-maintenance strategy. Users should follow the battery manufacturer’s recommendations when configuring equalization settings.
Flexible Battery Management
With 150A maximum charging current, BMS communication and external BTS support, the PV10000 offers several features for battery monitoring and management. These functions allow the inverter to be integrated into systems where battery performance and monitoring are important considerations.
PV10000 Price in Pakistan
The PV10000 8KW Hybrid Inverter is available at a listed price of Rs. 255,000. Its combination of dual AC power sources, automatic switching, BMS communication, BTS support and battery equalization makes it a feature-rich option for compatible power systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PV10000 |
| Capacity | 8KW |
| Type | Hybrid Solar Inverter |
| AC Power Sources | 2 Independent Sources |
| AC Switching | Automatic |
| Maximum Charging Current | 150A |
| BMS Communication | Supported |
| Communication Ports | RS485, CAN-BUS, RS232 |
| External BTS | Supported |
| Battery Temperature Detection | Supported |
| Battery Equalization | Supported |
| Price | Rs. 255,000 |
Key Features
- ⚡ 8KW power capacity
- 🔄 Two independent AC power sources
- 🔁 Automatic AC source switching
- 🔋 150A maximum charging current
- 📡 BMS communication support
- 🔌 RS485, CAN-BUS & RS232
- 🌡️ External BTS support
- 🔋 Battery temperature detection
- ⚙️ Battery equalization function
- 💰 Price: Rs. 255,000
Frequently Asked Questions
1. What is the capacity of PV10000?
The PV10000 has an 8KW power capacity.
2. How many AC power sources does PV10000 support?
It supports two independent AC power sources with automatic switching.
3. What is the maximum charging current?
The maximum charging current is 150A.
4. Does PV10000 support BMS communication?
Yes. It has a reserved communication port supporting RS485, CAN-BUS and RS232.
5. Does PV10000 support an external battery temperature sensor?
Yes. The inverter supports an external BTS (Battery Temperature Sensor) for battery temperature detection.
6. Does PV10000 have a battery equalization function?
Yes. The battery equalization function is designed to optimize battery performance and support battery lifecycle.
7. What is the price of PV10000?
The listed price is Rs. 255,000.
Why Choose PV10000?
The PV10000 8KW Hybrid Inverter combines 8KW capacity, dual independent AC power sources, automatic switching, 150A charging capability, BMS communication and external BTS support. Its battery equalization function further adds flexibility for compatible battery-management systems.
